Learn about the equipment you’ll use for The High School Radio Project.

RØDECaster Pro II

RØDECaster Pro II - top view

  1. 5.5” HD Touchscreen

  2. Record Button

  3. Channel Buttons

  4. Channel Faders

  5. Listen and Mute Buttons

  6. Headphone Output Controls

  7. Rotary Encoder

  8. SMART Pads

  9. Bank Switching Buttons

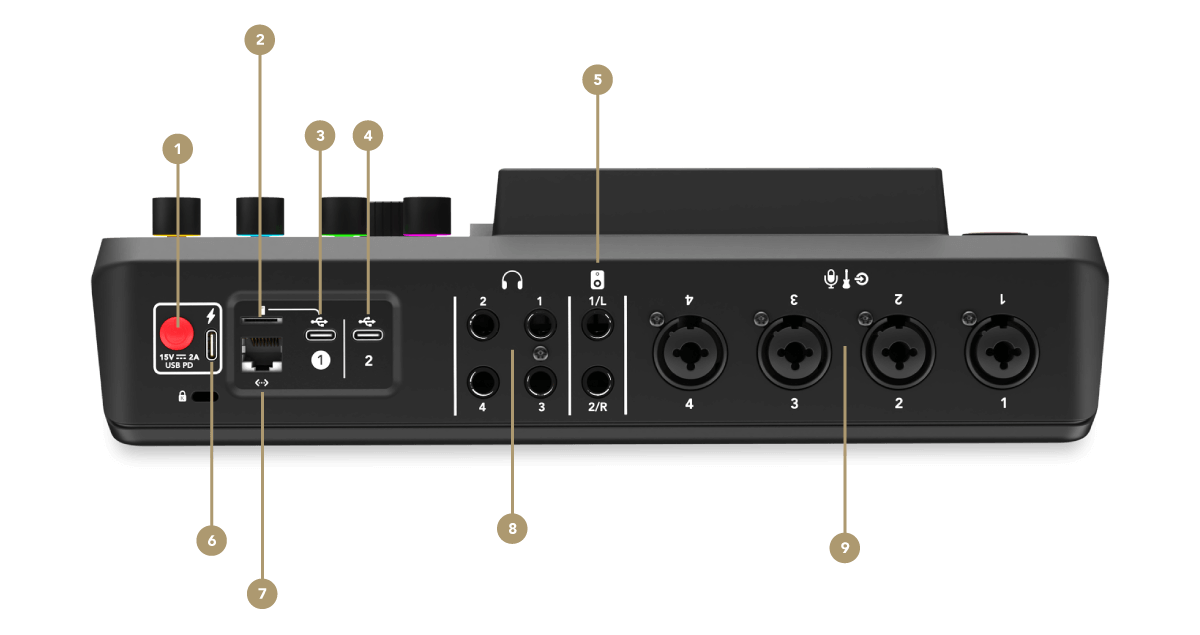

RØDECaster Pro II - rear view

  1. Power Button

  2. microSD Card Slot

  3. USB 1 Input

  4. USB 2 Input

  5. 1/4-inch Balanced Line Outputs

  6. Dedicated USB Power Port

  7. Ethernet Port

  8. 1/4-inch Headphone Outputs

  9. XLR/TRS Neutrik Combo Inputs

Get an overview of your High School Radio Project RØDECaster Pro II.

Excuse the “YouTube Thumbnail Face” face. This nine minute video goes beyond the Rodecaster “How to Get Started video and may prove useful.

Sound Pads

The RODECaster Pro II comes with three “banks” of sounds available via the sound pad. These sounds and music beds can be played as part of your broadcast. Bank #1 are the RODECaster defaults, Bank #2 features the News Open and News Close sounders as well as two different music beds for each format. Your school will be able to add eight sounds, music beds, or other effects to Bank #3.


To play a sound, simply press a button. Pressing again stops that sound. To load sounds into Sound Bank #3, your school will need to download the RODECaster Pro companion app for Windows or MAC.

Sound Bank #1

Sound Bank #2

Sound Bank #3
